UL E333178 Approval Flexible High Temperature Silicone Resin Braided Fiberglass Sleeve
1. Model Number: SB-SGS-70
Working temperature: 200ºC
2. Structure
UL E333178 Approval Flexible High Temperature Silicone Resin Braided Fiberglass Sleeve is non-alkali fiberglass braided then coated with silicone resin and treated in high temperature.
3. Dimension
| Inside Diameter | Wall Thickness (mm) | Standard Package (m/roll) |
| Nominal (mm) | Tolerance (mm) |
| φ0.5 | +0.2, -0.1 | ≥0.37 | 200 |
| φ1.0 | +0.2, -0.1 | ≥0.37 | 200 |
| φ1.5 | +0.2, -0.1 | ≥0.37 | 200 |
| φ2.0 | +0.2, -0.1 | ≥0.37 | 200 |
| φ2.5 | +0.3, -0.1 | ≥0.42 | 200 |
| φ3.0 | +0.3, -0.1 | ≥0.42 | 200 |
| φ4.0 | +0.3, -0.1 | ≥0.42 | 200 |
| φ4.5 | +0.3, -0.1 | ≥0.51 | 100 |
| φ5.0 | +0.3, -0.1 | ≥0.51 | 100 |
| φ6.0 | +0.3, -0.1 | ≥0.51 | 100 |
| φ7.0 | +0.3, -0.1 | ≥0.56 | 100 |
| φ8.0 | +0.3, -0.1 | ≥0.56 | 100 |
| φ9.0 | +0.3, -0.1 | ≥0.66 | 100 |
| φ10.0 | +0.3, -0.1 | ≥0.66 | 100 |
| φ12.0 | +1.0, -1.0 | ≥0.66 | 50 |
| φ14.0 | +1.0, -1.0 | ≥0.66 | 50 |
| φ16.0 | +1.0, -1.0 | ≥0.66 | 50 |
| φ18.0 | +1.0, -1.0 | ≥0.66 | 50 |
| φ20.0 | +1.0, -1.0 | ≥0.76 | 25 |
| φ25.0 | +1.0, -1.0 | ≥0.76 | 25 |
| φ30.0 | +1.0, -1.0 | ≥0.76 | 2 |
4. Usage
UL E333178 Approval Flexible High Temperature Silicone Resin Braided Fiberglass Sleeve with its good dielectric strength, flexibility and flame retarding properties make it high performance qualities. It can be widely used in insulated or partially insulated conductors, bus bars, component leads, or assemblies of electrical components etc.
5. Specification
| Item | Performance | Note |
| Dielectric Breakdown Voltage KV AC | Minimum Average | ≥7.0 | Before Aging |
| Minimum Single Point | ≥5.0 |
| Minimum Average | ≥3.5 | 6 Hrs* 245±5ºC 245±5ºC 6Hrs Aging |
| Minimum Single Point | ≥2.5 |
| No Breakdown | / | 1 KV in 2% Salt Water |
| Thermal Endurance | No Indication of Crack | OK | 1440 Hrs* 235±5ºC 235±5ºC 1440Hrs Aging |
| Fire Resistance | VW-1 | OK | UL 1441 |
6. Package Information
0.5mm ~ 4.0mm, 200 meters/roll;
4.5mm ~ 10.0mm, 100 meters/roll;
12.0mm ~ 18.0mm, 50 meters/roll;
20.0mm ~ 30.0mm, 25 meters/roll.
Carton Size 35*35*60cm
7. Sunbow Statements
1) We promise our clients excellent quality, reasonable price, perfect service and on-time delivery. We are committed to becoming a globally-outstanding and recognized leader in insulation sleeving industry, a preferred and qualified supplier of world-class manufacture and a well-known enterprise all over the world;
2) We promise all our products supplied are of high quality, environmental-friendly, safe and reliable. We always make our contribution to human and social harmony;
3) We promise that all our products follow close to the line of all applicable laws, rules and regulations, and any other related requirements;
4) We improve our equipment performance, make innovation in our technologies and upgrade our specifications continuously. We are keeping improving our products quality, saving energy, pursueing low-carbon economy and improving environmental-friendly and safe performance of the products;
5) We are committed to providing our staffs with effective and comprehensive training and corresponding resources to improve their skills and their awareness of health, safety and environmental protection. We apply ourselves to improve our staffs' professional skills and quality to ensure that they can improve working performance and career competitiveness.
8. FAQ
Q1. You are a factory or trading company?
We are a factory and we can provide best price and high quality products for you.
Q2. Can you accept sample orders?
Yes, we can accept sample orders and we can also provide free samples for your test if necessary.
Q3. What is your MOQ?
Normally, 1000m per size.
Q4. What are your payment terms?
T/T 100% or West Union.
Q5. How can I get my order? How can I know you sent the goods?
We will send the goods by UPS, DHL, FedEx or sea shipment. After we sent the goods , we will give you the tracking number or other relative files for your check.
Q6. How about your quality?
Try a small order, and then you can judge.
Q7. Have you passed any certificates?
Yes. We are an ISO9001:2008 quality management system certificated manufacturer. Our products have passed UL, ROHS, REACH certifications. If necessary, we can send you relative files.
Q8. Are there any advantages to choose your products?
1) ISO 9001 : 2008 TS 16949 standard factory manufacturer
2) high-tech enterprise in China
3) with 12-year manufacturing experience
4) factory direct sales
5) best price high quality product
6) quick delivery time
7) quick response for feedback
8) few complaints from customers
9) more competitive price for VIP customers
10) convenient situation near to seaport
9. More Products to Choose
PLEASE CLICK "CONTACT NOW" TO GET FREE SAMPLES!
Product Tags:
|
|

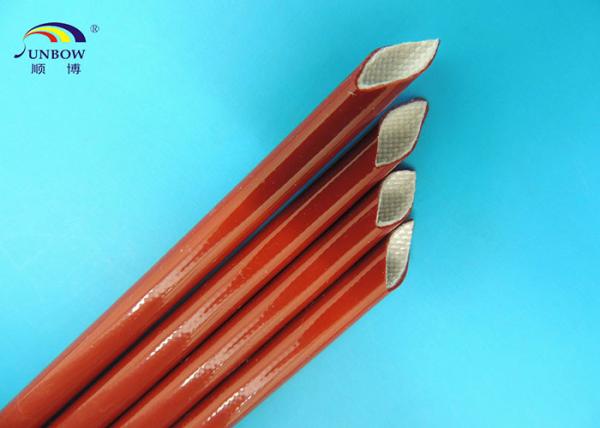

UL E333178 Approval Flexible Braided Fiberglass Sleeve / Silicone Rubber Fiberglass Sleeving Images
|
