Brand Name : SUNBOW
Model Number : SB-ES
Certification : UL, ROHS, REACH
Place of Origin : Shenzhen, China
MOQ : 2000 meters
Price : USD 0.01-0.99/M
Payment Terms : L/C, T/T, Paypal
Supply Ability : 200000meters/week
Delivery Time : 7-10 work days
Packaging Details : packing by rolls, then rolls by carton
Product name : expandable braided sleeving
working temperature : -50-150 centigrade degree
melting point : 250 degree
Flame resistant grade : UL vw-1
yarn number : one or three
diameter of yarn : 0.25 or 0.2mm
Strand number : 24 spindles or 48 spindles or 72 spindles,
monofilament : PET, PA6, PA66
Anti - brasive PET Expandable braided Sleeving For cable protection
Product description:
Fray Resistant Polyester Braided Insulating Sleeving 63.5mm is braided with environment-friendly polyester monofil. (PET, PA6, PA66, PPS), It possesses good flexibility, fire resistance, abrasive resistance and thermal insulation performance. The sleeving owns smooth surface, bright color, various patterns.
Characteristics:
1. high temperature resistant (working temperature: -50°c ~ 150°c) 2. high melting point (250°c) 3. high fire resistant performance 4. flexible, abrasive resistance, thermal insulation
Working temperature:
-50°c ~ 150°c
Specification:
Part No. | Model No. | Min Width (mm) | Max Width(mm) | Part No. | Model No. | Min Width(mm) | Max Width (mm) |
24# | 120024 | 3 | 6 | 56# | 120056 | 8 | 16 |
125024 | 3 | 6 | 125056 | 8 | 16 | ||
320024 | 4 | 8 | 320056 | 10 | 20 | ||
325024 | 4 | 8 | 325056 | 10 | 20 | ||
32# | 120032 | 4 | 8 | 64# | 120064 | 9 | 18 |
125032 | 4 | 8 | 125064 | 9 | 18 | ||
320032 | 5 | 10 | 320064 | 12 | 24 | ||
325032 | 5 | 10 | 325064 | 12 | 24 | ||
36# | 120036 | 5 | 10 | 72# | 120072 | 10 | 12 |
125036 | 5 | 10 | 125072 | 10 | 12 | ||
320036 | 6 | 12 | 320072 | 15 | 30 | ||
325036 | 6 | 12 | 325072 | 15 | 30 | ||
40# | 120040 | 6 | 12 | 96# | 120096 | 12 | 24 |
125040 | 6 | 12 | 125096 | 12 | 24 | ||
320040 | 7 | 14 | 320096 | 20 | 40 | ||
325040 | 7 | 14 | 325096 | 25 | 50 | ||
48# | 120048 | 7 | 14 | 120# | 120120 | 15 | 30 |
125048 | 7 | 14 | 125120 | 15 | 30 | ||
320048 | 8 | 16 | 320120 | 30 | 70 | ||
325048 | 8 | 16 | 325120 | 35 | 100 |
Application: Fray Resistant Polyester Braided Insulating Sleeving 63.5mm is widely used in bounding and protecting of electrical cables, automobile and aviation sectors.
The selection of this product refers to following four parameters.
A- yarn number (one or three);
B- Diameter of single yarn (0.25mm or 0.20mm)
C- Strand number (48 spindles braiding machine or 72 spindles braiding machine) D- flat width(6mm or 18mm)
SUNBOW statements:
1) We promise our clients excellent quality, reasonable price, perfect service and on-time delivery. We are committed to becoming a globally-outstanding and recognized leader in insulation sleeving industry, a preferred and qualified supplier of world-class manufacture and a well-known enterprise all over the world;
2) We promise all our products supplied are of high quality, environmental-friendly, safe and reliable. We always make our contribution to human and social harmony;
3) We promise that all our products follow close to the line of all applicable laws, rules and regulations, and any other related requirements;
4) We improve our equipment performance, make innovation in our technologies and upgrade our specifications continuously. We are keeping improving our products quality, saving energy, pursueing low-carbon economy and improving environmental-friendly and safe performance of the products;
5) We are committed to providing our staffs with effective and comprehensive training and corresponding resources to improve their skills and their awareness of health, safety and environmental protection. We apply ourselves to improve our staffs' professional skills and quality to ensure that they can improve working performance and career competitiveness.
![]() |

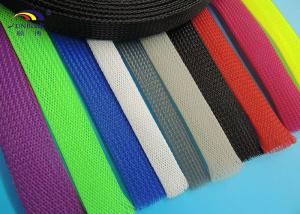

Anti - brasive PET Expandable braided Sleeving For cable protection Images |
