Polyester monafilament Black expandable braided cable sleevings

Brand Name : SUNBOW

Model Number : SB-ES

Certification : ROHS, REACH

Place of Origin : Shenzhen, China

MOQ : 2000meters

Price : USD 0.01-0.99/m

Payment Terms : L/C, T/T, Paypal

Supply Ability : 200000meters/week

Delivery Time : 5-7 work days

Packaging Details : Packing by rolls, then rolls by carton.

Product name : Polyester braided expandable sleeving

Working temperature : -50-150 degree

Melting point : 250 degree

Flame resistant grade : UL VW-1

Flat width size : 3-100mm

Application use : cable, wire harness

Contact Now

Polyester monafilament Black expandable braided cable sleevings

1. Description of goods
Expandable Cable Sleeving For Electrical Wires is braided by environment-friendly polyester monofil (PET,PA6,PA66,PPS).
Working temperature: -50℃~150℃
Melting point: 250℃±5
Flame resistant grade:UL VW-1

2. Characteristics
1). Flexibility, fire resistance, abrasive resistance and thermal insulation performance ;
2). The sleeving owns smooth surface, bright color, various patterns ;
3). Working temperature: -50℃~150℃
4). Melting point: 250℃±5
5). Flame resistant grade:UL VW-1
6). Standard color: Black color

3. Range of application
Expandable Cable Sleeving For Electrical Wires is widely used in bounding and protecting of electrical cables, automobile and aviation sectors.

4. Parameters

A- Yarn number (one or three);
B- Diameter of single yarn(0.25mm or 0.20mm)
C- Strand number (48 spindles braiding machine or 72 spindles braiding machine)
D- Flat width(6mm or 18mm)

Size

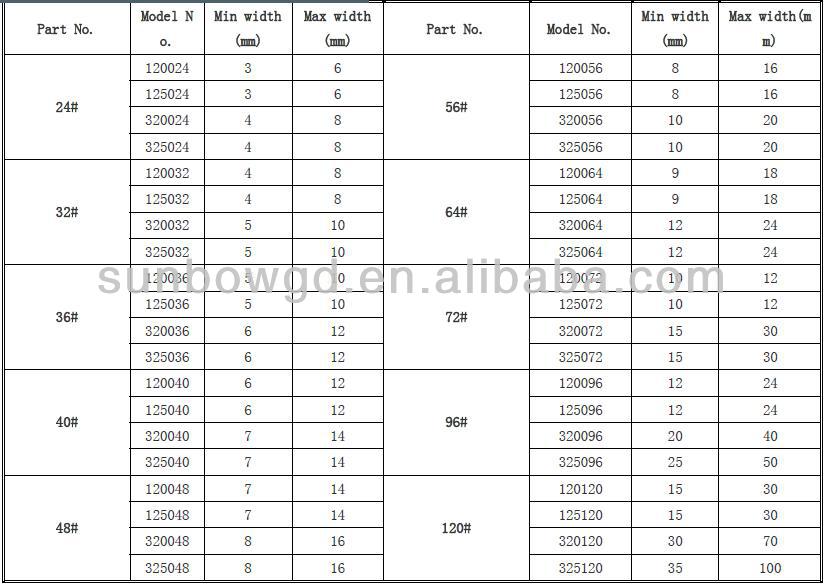

5. Dimension

Polyester monafilament Black expandable braided cable sleevings

6. Color
Standard color is black, other color available upon request .

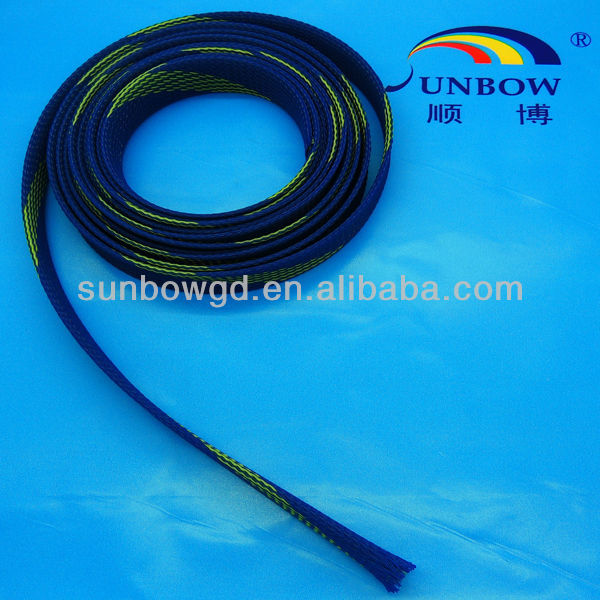

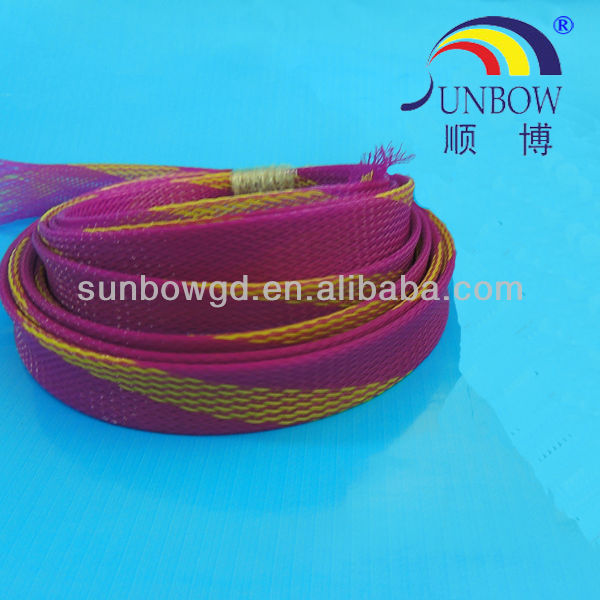

7. Pictures of goods
Expandable Cable Sleeving For Electrical Wires

Packaging & Shipping

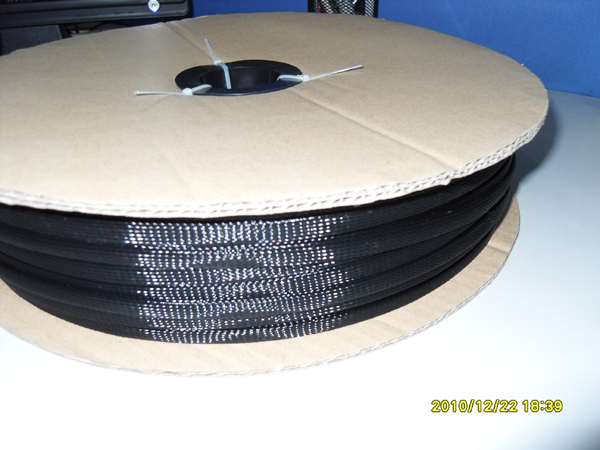

8. Packing informations
Polyester monafilament Black expandable braided cable sleevings
